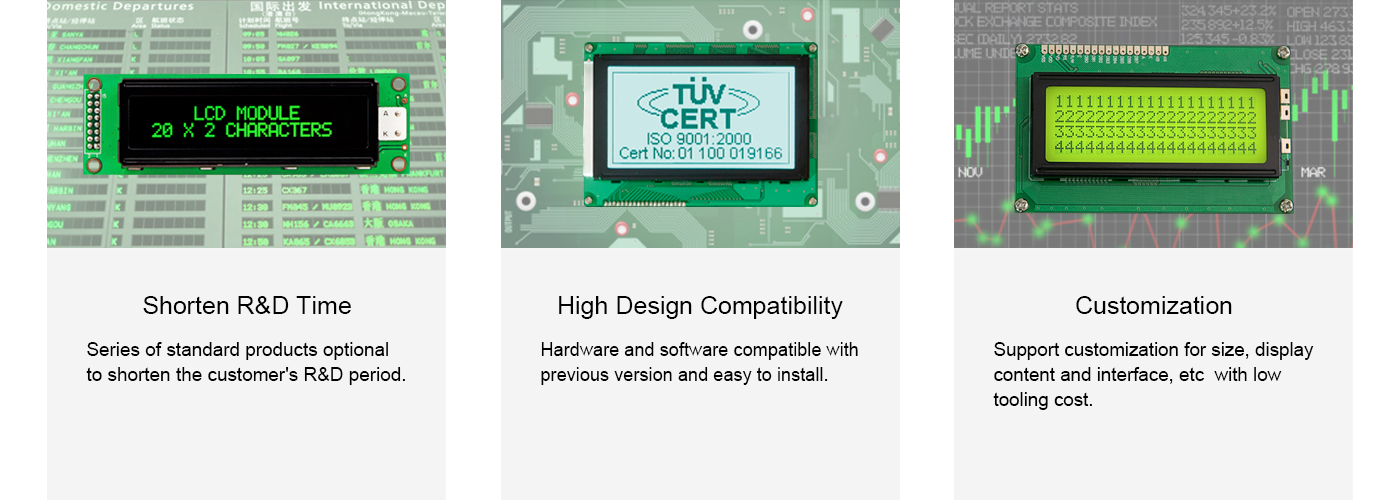

Product Feature




COB Module-Character


Serial No.

Display Format
(Character*Line)

Outline Dimension
(mm)

V.A Size
(mm)

Character Size
(L*W)

Dot Size
(mm)

Dot Pitch
(mm)

ABC008001C 8*1 80.0*36.0 60.5*18.5 6.45*10.75 1.25*1.30 1.30*1.35
ABC008001B 8*1 84.0*44.0 61.0*15.8 6.45*10.75 1.25*1.30
1.30*1.35
ABC008002D 8*2 58.0*32.0 38.0*16.0 2.96*5.56 0.56*0.66 0.60*0.70
ABC016001A 16*1 80.0*36.0 65.0*14.0 3.15*6.3 0.55*0.70 0.65*0.80
ABC016001B 16*1 122.0*33.0 99.0*13.0 4.92*8.18 0.92*1.10 1.00*1.18
ABC016002C
16*2 122.0*44.0 99.0*25.0 4.84*9.66 0.92*1.10
0.98*1.16
ABC016002E
16*2 80.0*36.0 64.0*16.1 2.96*5.56
0.56*0.66
0.60*0.70
ABC016002G
16*2 84.0*44.0
62.0*18.0 2.95*5.55
0.55*0.65
0.60*0.70
ABC016004A
16*4 74.0*24.5
60.0*11.5 2.95*4.35
0.55*0.5
0.60*0.55
ABC020002A
20*2 116.0*37.0
82.8*19.8 3.20*5.55
0.60*0.65
0.65*0.70
ABC020004B
20*4 98.0*60.0
77.0*26.5 2.95*4.75
0.55*0.55
0.60*0.60
ABC020004G
20*4 98.0*60.0
77.0*26.5 2.95*4.75
0.55*0.55
0.60*0.60
ABC040002A
40*2 182.0*33.5
154.5*15.8 3.20*5.55
0.60*0.65
0.65*0.70
ABC040004A
40*4 190.0*54.0
149.0*30.0 2.81*4.68
0.53*0.55
0.57*0.59


COB Module-Graphic


Serial No.

Display Format

(Resolution)

Module Size

(mm)

V.A Size

(mm)

Dot Size

(L*W)

Dot Pitch

(mm)

Controller LSI

ABG122032H 122*32 84.0*44.0 61.0*19.5 0.40*0.45 0.44*0.49
ABG122032G 122*32 80.0*36.0 60.5*18.5 0.40*0.45 0.44*0.49
ABG128064A 122*32 93.0*70.0 70.7*38.8 0.48*0.48 0.52*0.52
ABG128064C 128*64 78.0*70.0 62.0*44.0 0.40*0.56 0.44*0.60
ABG192064E 192*64 100.0*60.0 84.0*31.0 0.36*0.36 0.41*0.41
ABG240064B 240*64 180.0*65.0 132.0*39.0 0.49*0.49 0.53*0.53
ABG240128S 240*128 144.0*104.0 114.0*64.0 0.40*0.40 0.45*0.45
APG320240B 320*240 160.0*109.0 123.0*92.1 0.33*0.33 0.36*0.36


COB(Chip On Board) is one of the traditional structures of LCD module.

Usually consisting of PCBA (LCD driver is on PCB), LCD, bezel, zebra/heat seal/pin  and backlight, etc. which can realize segment, character or dot matrix graphics display.
